In mission-critical and professional environments, storage is far more than just capacity. Whether on workstations, servers, NAS systems, or SAN infrastructures, filling a disk to 90% or more can lead to a cascade of issues impacting performance, reliability, and system availability.
This article takes a technical look at why saturating hard drives (HDDs) and solid-state drives (SSDs) is bad practice and outlines actionable measures for system administrators to mitigate risks in both on-premise and cloud infrastructures.
1. Fragmentation and Latency in Mechanical Drives (HDD)
HDDs are still widely used in backup environments, archiving, and cold data storage. Their spinning platters and moving read/write heads make them particularly vulnerable to fragmentation.
Filesystem Impact:
- In NTFS, ext4, and other filesystems, block fragmentation increases exponentially when disk usage exceeds 85%.
- Read/write heads must seek across multiple physical locations to access a single file, increasing seek times and degrading I/O performance.
- In RAID arrays, a full disk can cause slower rebuilds and degraded parity synchronization (RAID 5/6).
Recommendation:
Maintain at least 15-20% free space on actively used mechanical drives or those in RAID arrays.

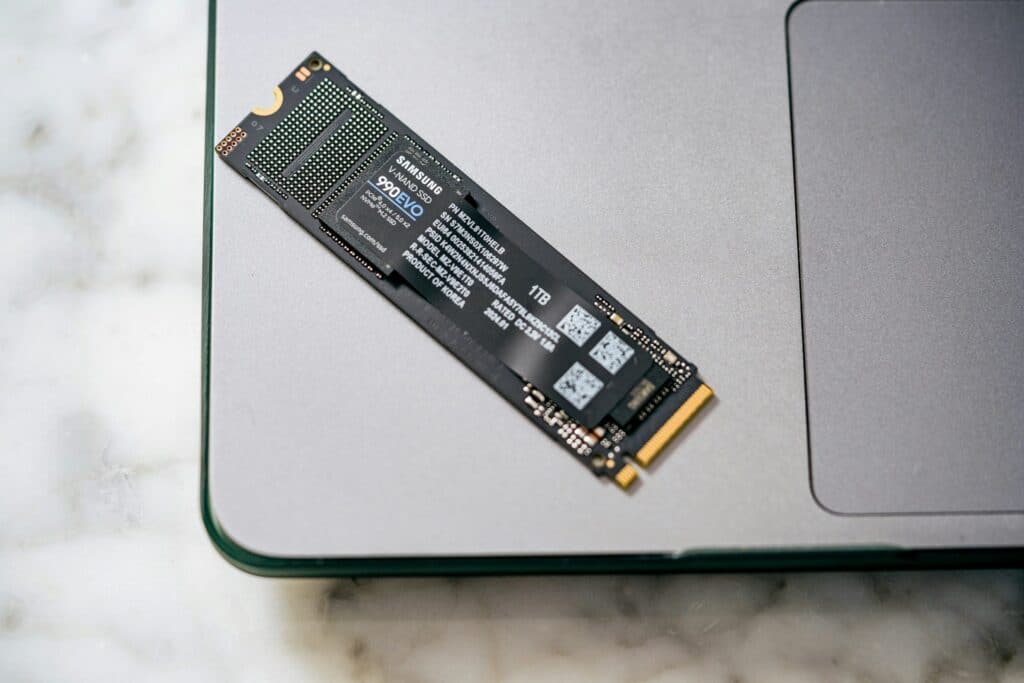

2. Write Amplification and Garbage Collection in SSDs
SSDs rely on NAND blocks and controllers that must erase data before rewriting. When space is low, operations like garbage collection, wear leveling, and TRIM increase in frequency.
Consequences:
- Lower sustained IOPS, especially under random writes.
- Higher write latency during heavy loads.
- Premature NAND degradation due to excessive write cycles (TBW).
Internal Overprovisioning:
Manufacturers reserve 7-10% of SSD space for controller use. Once the user fills the drive to 100%, this margin vanishes, and performance enters a degraded mode.
Recommendation:
For SSDs used in virtualization, containers, or databases, leave 20-30% free space, especially when manual overprovisioning isn’t configured.
3. Saturation in Copy-on-Write Filesystems (ZFS, Btrfs)
Advanced filesystems like ZFS, Btrfs, and APFS rely on Copy-on-Write (CoW) logic. When usage exceeds 80%, effects become severe:
- In ZFS, features like compression, deduplication, snapshots, and scrubs require ample free space.
- ZFS recommends staying below 80-85% usage to avoid fatal errors (
ENOSPC) and maintain pool integrity. - A full system can block operations like
zfs sendorzfs receive.
Recommendation:
For ZFS volumes, keep at least 20% free space to prevent corruption, snapshot loss, and replication failures.
4. Space Requirements in Virtualized Environments (VMware, KVM, Proxmox)
In hypervisors and virtualization stacks:
- Disk images (VMDK, QCOW2, RAW) need space to grow dynamically.
- In thin-provisioned environments, datastore saturation can halt VMs or cause data corruption.
- Snapshot backups (Veeam, PBS) require additional space for temp files and retention cycles.
Recommendation:
Monitor with
prometheus-node-exporter, Zabbix, or Grafana and configure alerts at 75-80% usage thresholds.
5. Best Practices and Monitoring in Production
| Component | Technical Recommendation |
|---|---|
| File Servers | ≥ 15% free space, with automated rotation and archiving scripts |
| Databases (MySQL, PGSQL) | ≥ 25% free for indexes, temp files, and WAL logs |
| SSDs for Virtualization | ≥ 20% free, avoid using as swap or temp partitions |
| NAS with RAID | Set capacity alerts per volume and RAID group |
| Backup Systems | Use retention policies and schedule regular restore tests |
Do not rely solely on OS-reported “free space.” In ZFS, use zfs list and zpool list for accurate usable capacity readings.
6. Tools to Prevent Disk Saturation
- Linux:
df -h,du -sh /*,lsof | grep deleted,iotop,smartctl - Windows Server: PerfMon, Storage Spaces,
WinDirStat, PowerShell scripts - NAS (Synology, TrueNAS): Alerts, auto-rotation, and log auditing
- Cloud: Use lifecycle policies (S3, Azure Blob), autoscaling, and tagging for audit
Conclusion
For any sysadmin, avoiding disk saturation is a core concern tied to availability, data integrity, and system performance. It’s not just about raw capacity, but smart management of data lifecycle and filesystem behavior.
Full disks are slow, error-prone, and fragile. Applying usage policies, continuous monitoring, and sound architecture is essential for any modern stack—from single-node servers to distributed storage clusters.
Frequently Asked Questions (FAQ)
What is the minimum recommended free space for enterprise SSDs?
20–30% in production environments, especially if there’s no configurable overprovisioning.
What happens if a ZFS volume fills up completely?
It can trigger write errors, snapshot loss, pool corruption, and replication failure.
Do mechanical HDDs suffer when full?
Yes. Fragmentation increases, leading to higher seek times and lower performance.
Can compression be used to reclaim space on full disks?
Only if done early. On full disks, CoW filesystems may lack free blocks to rewrite data.
What Linux tools help prevent full disk issues?du, df, iotop, ncdu, smartctl, plus monitoring via Prometheus, Nagios, or Zabbix.
What should I do if an SSD is saturated and performance drops?
Free up space, run fstrim, idle the system to let GC run, or securely erase the drive if necessary.
